LOGIQ Fortis – SonoMedical GmbH

Description

Console system for general imaging in hospitals and specialist practices

Ultrasound system for general imaging in radiology, internal medicine, vascular medicine and women's health. It works with XDclear probes, a 23.8″ monitor and a 12.1″ touchscreen; elastography, contrast and volume imaging are available depending on configuration.

Features & equipment

XDclear probes and compounding

XDclear probes, CrossXBeam compounding, Coded Harmonics and SRI-HD speckle reduction support detailed imaging right down to deep structures.

Broad general range

Abdominal, vascular, small parts, breast, musculoskeletal, obstetrics & gynaecology, urology, paediatrics, and cardiology with sector and TEE probes.

Elastography, contrast, volume

Depending on configuration: shear wave and strain elastography, UGAP, contrast-enhanced ultrasound, B-Flow, Volume Navigation and 3D/4D.

Assistants for routine workflows

Depending on configuration: Scan Assistant and Compare Assistant, Auto IMT, Auto EF and a thyroid package to standardise recurring examinations.

Large monitor, touchscreen

23.8″ Full HD monitor on an articulating arm, 12.1″ touchscreen and height-adjustable control panel; battery-powered scanning depending on configuration.

Wide probe portfolio, DICOM

Convex, linear, matrix, sector, volume and TEE probes; DICOM 3.0, LAN, USB 3.0, HDMI, optional Wi-Fi, Vscan Air CL can be paired.

Product images and descriptions are for illustration purposes and may show optional equipment. Errors excepted; subject to change and technical modifications.

Manufacturer	GE HealthCare
Model	LOGIQ Fortis
Year of manufacture	on request
Condition	on request
Form factor	Cart-based console
Probe ports	4
Applications	General & internal medicine, Obstetrics & gynaecology, Cardiology
Probes	28 compatible probes (see “Probes” tab)
Monitor	23.8″ HDU LCD, Full HD (1920 × 1080)
Touchscreen	12.1″, colour
Imaging modes	B, M, anatomical M-mode, colour Doppler, power Doppler, PW, Microvascular Imaging; CW, contrast, 3D/4D optional
Weight	approx. 85 kg
Dimensions (W × D × H)	530 (565 with monitor) × 885 × 1250–1800 mm
Connectivity	DICOM 3.0, LAN, USB 3.0, HDMI, Wi-Fi 802.11ac (optional)

Errors and changes excepted.

Questions about the configuration?

We advise you on probes, software licences and accessories.

Ask a question

Probe type

Application

Tip: click probes to add them straight to your enquiry.

Details

Note: whether a probe can be used with a specific system depends on factors such as its configuration, software version, hardware revision and year of manufacture. Information without guarantee; errors and changes excepted.

Open the probe catalogue

Delivery

We deliver only to businesses, companies, self-employed professionals or public institutions (B2B).

Scope of delivery

The actual scope of delivery depends on the quote or order configuration. Software licences and optional software features, probes as well as accessories and peripherals – e.g. carts/trolleys, holders, cables, adapters, printers and transport solutions – are not included and are available separately.

Service & maintenance

We are there for you after the purchase, too, and support you with service and maintenance for your system – just get in touch.

Leasing & financing

On request, we arrange attractive leasing or financing offers through renowned financial service providers – tailored to your budget and plans.

Questions about this item?

Call or write to us – we will advise you personally.

Ask a question

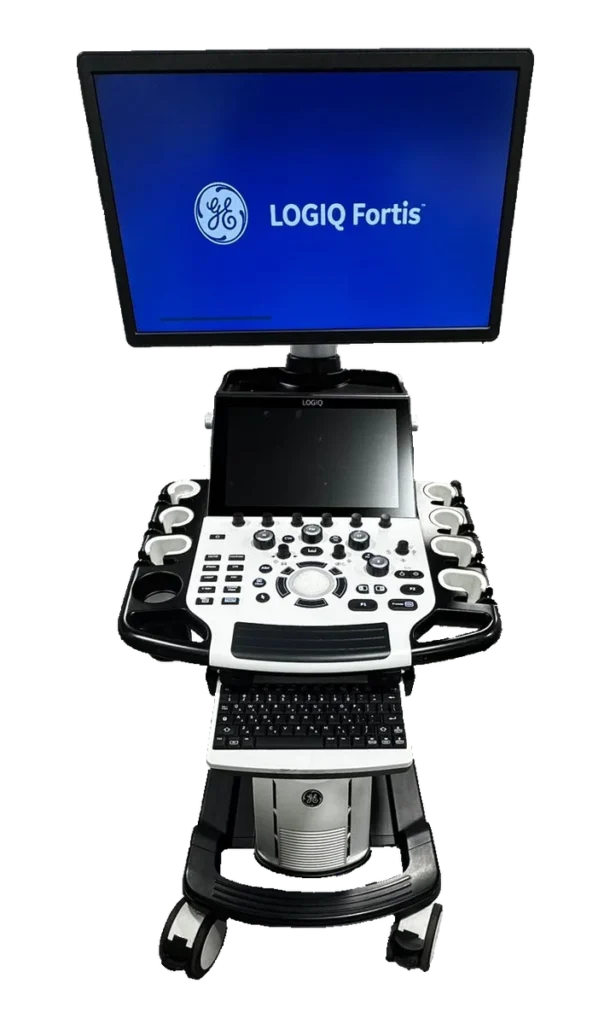

GE LOGIQ Fortis
