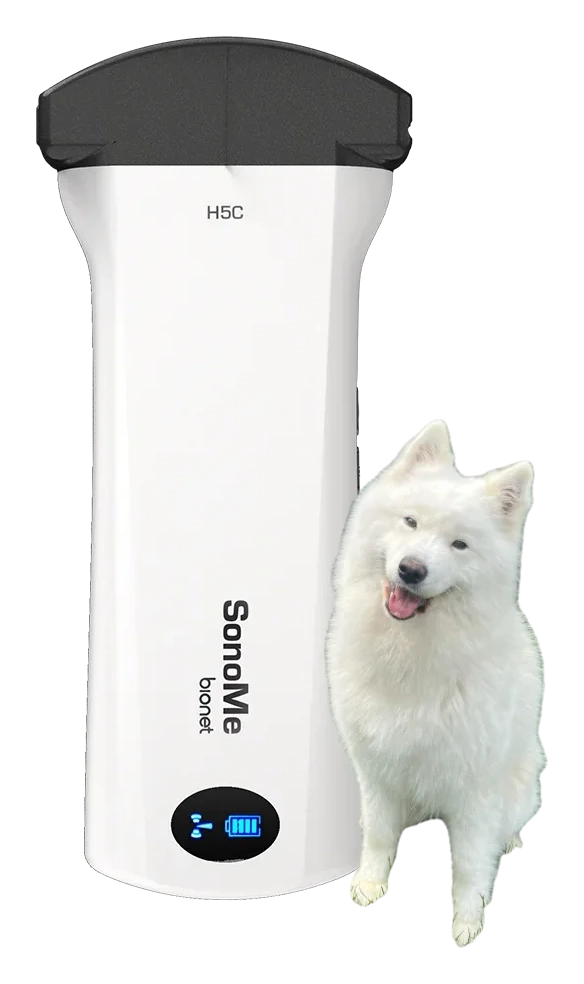

H5C VET – SonoMedical GmbH

Description

Wireless convex probe for abdomen and pregnancy

The SonoMe H5C VET is a wireless 3.2–5 MHz convex probe with 192 elements that transmits the image via Wi-Fi to an iPhone or iPad. It is intended for small, medium-sized and large animals – for abdominal scans, pregnancy checks, and fluid, foreign body and kidney checks.

Features & equipment

Convex with 192 elements

3.2–5 MHz and an imaging depth of approx. 9 to 30 cm – designed for deeper-lying organs in the abdomen and pelvis.

For small to large animals

Abdomen, gynaecology and pregnancy, plus fluid, foreign body and kidney checks in small to large animals.

Animal patients, measurement, notes

VET app with animal patient registration, distance, area, circumference and angle measurement, trace, flow velocity and text annotation.

Colour, power and PW Doppler

Colour Doppler, power Doppler (PDI) and PW Doppler complement B- and M-mode; the image can be adjusted via TGC and focus, among other settings.

Around 5 hours' runtime

Approx. 250 g, 5600 mAh battery for about 5 hours; charging via USB, operation via the app.

Integrated probe, own Wi-Fi

Convex probe integrated in the device; connection via its own 2.4 GHz Wi-Fi, storage as JPG/MP4 on the mobile device, DICOM support.

Product images and descriptions are for illustration purposes and may show optional equipment. Errors excepted; subject to change and technical modifications.

Manufacturer	SonoMe
Model	H5C VET
Year of manufacture	on request
Condition	on request
Form factor	Handheld
Probe ports	integrated probe
Applications	Dogs & cats, Horses, Abdomen, Reproduction & pregnancy, Emergency
Probes	1 compatible probe (see “Probes” tab)
Monitor	via iPhone or iPad (SonoMe VET app)
Touchscreen	via connected mobile device
Imaging modes	B, B/M, colour Doppler, power Doppler (PDI), PW
Weight	approx. 0.25 kg
Dimensions (W × D × H)	approx. 70 × 23 × 160 mm
Battery	5600 mAh, approx. 5 h; charging via USB
Connectivity	Wi-Fi 2.4 GHz (IEEE 802.11n); SonoMe VET app for iPhone/iPad; images JPG, videos MP4; DICOM
Protection rating	IPX1

Errors and changes excepted.
